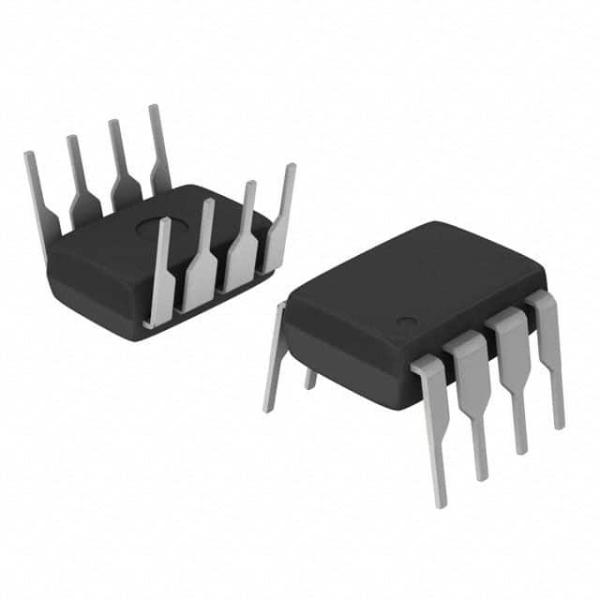

Part Number :
LM741CN
Manufacturer :
Sanyo Semiconductor/ON Semiconductor
Description :
LM741CN datasheet pdf and Linear - Amplifiers - Video Amps and Modules product details from Sanyo Semiconductor/ON Semiconductor stock available at Rozee
Lifecycle :
New from this manufacturer
Delivery :
DHL、UPS、FedEx、Registered Mail
Payment :
T/T Paypal Visa MoneyGram Western Union
More Information :
LM741CN More Information
ECAD :
Request Free CAD Models
Pricing(USD) :
$0.00
Remark :
Manufacturer: Sanyo Semiconductor/ON Semiconductor.
Rozee is one of the Distributors.
Wide range of applications.
Mount :
Through Hole
Height :
12.7 mm
Weight :
4.535924 g
Packaging :
Rail/Tube
Case/Package :
DIP
Number of Pins :
8
Power Dissipation :
500 mW
Max Supply Voltage :
36 V
Number of Channels :
1
Number of Elements :
1
Gain Bandwidth Product :
1.5 MHz
Max Dual Supply Voltage :
18 V
Operating Supply Current :
1.7 mA
Max Operating Temperature :
70 °C
Input Offset Voltage (Vos) :
6 mV
Common Mode Rejection Ratio :
70 dB
Products Category :
Integrated Circuits (ICs) - Linear - Amplifiers - Video Amps and Modules
Qty :
306 In Stock
Applications :
Advanced driver assistance systems (ADAS)
Motor drives
PC & notebooks
Width :
12.7 mm
Length :
12.7 mm
Bandwidth :
1 MHz
Slew Rate :
0.5 V/µs
Voltage Gain :
106.02 dB
Output Current :
25 mA
Input Bias Current :
500 nA
Min Supply Voltage :
10 V
Number of Circuits :
1
Number of Amplifiers :
1
Nominal Supply Current :
1.7 mA
Min Dual Supply Voltage :
5 V
Operating Supply Voltage :
22 V
Min Operating Temperature :
0 °C
Output Current per Channel :
25 mA
Power Supply Rejection Ratio (PSRR) :
77 dB
